Workspaces as Robot Harness

A robot only needs one hard contract: joint commands. Everything else a coding agent needs — tools that translate intent into joint commands, live perception, and knowledge about the task — we put into a single directory, and the agent is started inside it. The workspace is the harness. Because it is made only of Python and files, any coding agent can use it without adaptation, one agent can move between robots by moving between directories, and the harness can be edited while the agent is being trained.

机器人只需要一条硬契约：关节指令。coding agent 所需的其他一切，包括把意图翻译成关节指令的工具、实时感知，以及关于任务的知识，我们都放进同一个目录，并让 agent 直接在这个目录中启动。这个工作空间本身就是 harness。由于它只由 Python 和文件构成，任何 coding agent 都可以不经适配直接使用；同一个 agent 换一个目录就能换一台机器人；harness 也可以在 agent 训练期间持续修改。

Start from the robot. Whatever software runs on top of it, a robot ultimately understands one thing: commands to its joints — arm angles, base velocities, gripper forces. That command space can already express every motion the body is capable of. Any feature that replaces it, whether a grasp primitive, an end-effector API, or a fixed menu of skills, can only narrow what the agent is allowed to do. The more refined such a tool is, the easier it is for the agent to use, and the smaller the set of motions it can still reach. As models become more capable, such features turn from help into a ceiling. So the most primitive action, and the only contract a harness should enforce, is the joint command.

先从机器人说起。无论上层运行什么软件，机器人最终只理解一样东西：发给关节的指令，包括手臂角度、底盘速度和夹爪力。这个指令空间本身已经能表达这具身体能做出的一切动作。任何取代它的功能，无论是抓取原语、末端执行器 API，还是一份固定的技能清单，都只会缩小 agent 被允许做的事。工具设计得越精密，agent 用起来越方便，它还能触及的动作也越少。模型越强，这些功能就越会从帮助变成天花板。因此，最原始的动作、也是 harness 唯一应当强制的契约，就是关节指令。

Yet today's agents cannot drive joints well on their own. Turning "grasp the scissors at this pixel" into a sequence of joint angles requires depth, kinematics, collision checks and timing — work that should not be redone in every reply. The agent needs tools that translate intent at different levels into joint commands. The question is what form those tools should take. A coding agent is, above all, good at code: reading it, running it, changing it. So the tools should be ordinary Python files that the agent can open and understand, call from a shell, and rewrite when they fall short. A tool written this way is a ladder, not a fence. The agent may climb it, inspect how it was built, modify it, or step off and command the joints directly.

然而，今天的 agent 还无法独立地把关节驱动好。把“在这个像素位置抓住剪刀”变成一串关节角，需要深度、运动学、碰撞检查和时序控制，这些工作不应该在每一次回复中重新做一遍。agent 需要能把不同层次的意图翻译成关节指令的工具。问题在于这些工具应该采取什么形式。coding agent 最擅长的就是代码：读代码、跑代码、改代码。所以这些工具应该是普通的 Python 文件：agent 能打开读懂，能在 shell 中调用，不够用时能直接改写。以这种方式写成的工具是一架梯子，而不是一道围墙。agent 可以顺着它往上爬，可以查看它是怎么搭的，可以修改它，也可以离开它，直接下达关节指令。

Figure 2 follows one such tool, a grasp, down to the joints. Because every layer is readable code, the agent is not limited to calling the top: it can adjust a grasp pose that looks wrong, move a trajectory away from a collision, nudge the hand when it is slightly off, or free a stuck joint by commanding it directly.

图 2 顺着一个抓取工具一路追到关节。由于每一层都是可读的代码，agent 不必只调用最上层：抓取位姿看起来不对，可以调整；轨迹可能碰撞，可以让开；手的位置略有偏差，可以微调；关节卡住了，可以直接下达关节指令把它解脱出来。

To act, the agent must also see. A running robot produces a continuous stream of perception: head and wrist images, depth, tracked points, measured joint states. Sometimes the agent needs all of it; often it needs none. Pushing every frame into the model's context would fill it with data that is rarely read. Instead, the stream should land in the same place as the tools — on disk, as files — and the agent reads what it needs, when it needs it. Each folder plays the role of a ROS topic: the robot keeps publishing the latest message, and the agent subscribes only at the moment it wants to look.

要行动，agent 还必须能看见。运行中的机器人会产生连续的感知流：头部与手腕相机图像、深度、跟踪点、实测关节状态。有时 agent 全都需要，更多时候一样都不需要。把每一帧都推进模型上下文，只会让上下文被很少被读取的数据占满。更好的做法是让感知流和工具落在同一个地方，也就是以文件的形式存在磁盘上，由 agent 在需要时读取所需内容。每个文件夹就相当于 ROS 中的一个 topic：机器人持续发布最新的消息，agent 只在想看的那一刻去订阅。

Once tools, perception and instructions are all files, the agent can improve the harness it works in. A tool that falls short can be edited. A lesson from a failed attempt can be written down for next time. A calculation it keeps repeating can become a helper script. Humans contribute in the same way, distilling what they know about the body and the task into manuals and skills. None of this needs a special mechanism: reading and writing files is what a coding agent already does best. The result is a robot harness native to coding agents, one that can grow with use rather than staying fixed at whatever its authors anticipated.

既然工具、感知和说明都是文件，agent 就可以改进自己所处的 harness：工具不好用，可以改；失败中得到的教训，可以记下来留给下一次；反复做的计算，可以写成辅助脚本。人类也以同样的方式参与，把自己对这具身体和任务的理解凝练成手册和技能。这一切都不需要专门的机制：读写文件本来就是 coding agent 最擅长的事。由此得到的是一套为 coding agent 原生设计的机器人 harness，它可以随着使用不断成长，而不是停留在作者最初预想的样子。

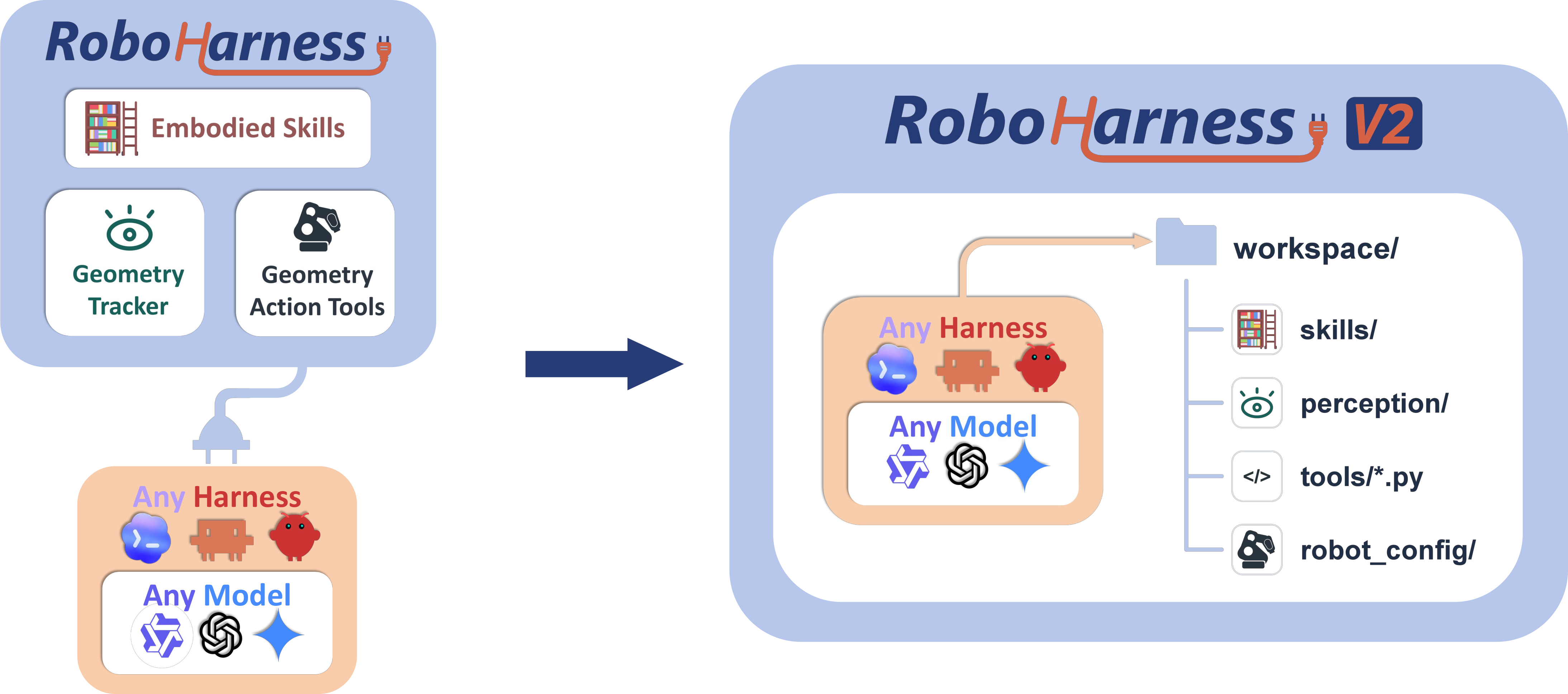

Put together, the answer is not a set of tools handed to the agent, but a place for the agent to work:

综合起来，答案不是交给 agent 的一组工具，而是一个让 agent 在其中工作的地方：

skills/ — accumulated knowledge. Task procedures written as Markdown, such as picking up an object, placing it in a container, or opening doors and drawers, plus a baseline skill that is always active. An agent activates a skill by name and reads its instructions and exit conditions. Since skills, tools and instructions are all files, the agent may also write its own.

skills/：积累的知识。 以 Markdown 编写的任务流程，例如拾取物体、放入容器、开门开抽屉，另有一个始终激活的基础技能。agent 按名称激活技能，并阅读其中的步骤和退出条件。由于技能、工具和说明都是文件，agent 也可以自己编写。

perception/ — the live senses. The latest head and wrist RGB images, depth previews, tracked points and measured joint states, all as files. perception/latest.json binds them to one observation sequence. A posture image of the robot's body is rendered only when the agent asks for it.

perception/：实时感知。 最新的头部与手腕 RGB 图像、深度预览、跟踪点和实测关节状态，全部以文件形式存在。perception/latest.json 把它们绑定到同一个观测序号。机器人身体的姿态渲染图只在 agent 主动请求时才生成。

tools/ — the ladder. One Python file per tool, about thirty in total: capturing cameras, planning a grasp from a clicked pixel, executing a planned pose, moving the base, adjusting the end-effector in head or wrist frame, opening and closing grippers. Each file begins with a physical overview and an input schema (--schema), followed by its full algorithm. Shared code lives in tools/util/, equally readable. Every tool ends the same way: it yields joint commands to the evaluator. There is no tool server in between.

tools/：梯子。 每个工具一个 Python 文件，共约三十个，涵盖相机采集、根据点击像素规划抓取、执行规划好的位姿、移动底盘、在头部或手腕坐标系中调整末端执行器、开合夹爪等。每个文件开头是物理层面的概述和输入 schema（--schema），后面是完整的算法实现。共享代码放在 tools/util/，同样可读。所有工具的终点都一样：把关节指令交给 evaluator。中间没有任何工具服务器。

robot_config/ — the body. The robot's URDF and meshes; a joint manual giving each joint's axis, limits and controller index; and, for every joint, an illustration of its −90°, 0° and +90° poses. control.py exposes the raw interface: a 27-value controller command for R1 Pro, and 14 scalars (six joints and a gripper per arm) for the X5. This is the one hard contract.

robot_config/：身体。 包括机器人的 URDF 和网格模型；一份关节手册，列出每个关节的转轴、限位和控制器索引；以及每个关节在 −90°、0°、+90° 三个姿态下的示意图。control.py 暴露原始接口：R1 Pro 是 27 维的控制器指令，X5 是 14 个标量（每条手臂 6 个关节加 1 个夹爪）。这就是唯一的硬契约。
